RAIF: Redundant Array of Independent Filesystems
Nikolai Joukov1,2, Arun M. Krishnakumar1, Chaitanya Patti1, Abhishek Rai1, Sunil Satnur1, Avishay Traeger1, and Erez Zadok1
1Stony Brook University,
2IBM T.J.Watson Research Center
1
Abstract
Storage virtualization and data management are well known problems
for individual users as well as large organizations.
Existing storage-virtualization systems either do not support a complete
set of possible storage types, do not provide flexible data-placement
policies, or do not support per-file conversion (e.g., encryption).
This results in suboptimal utilization of resources, inconvenience,
low reliability, and poor performance.
We have designed a stackable file system called Redundant Array of
Independent Filesystems (RAIF). It combines the data
survivability and performance benefits of traditional RAID
with the flexibility of composition and ease of development of
stackable file systems. RAIF can be mounted on top of directories and
thus on top of any combination of
network, distributed, disk-based, and memory-based file
systems. Individual files can be replicated, striped, or stored with
erasure-correction coding on any subset of the underlying file systems.
RAIF has similar performance to RAID. In configurations with parity,
RAIF's write performance is better than the performance of driver-level
and even entry-level hardware RAID systems. This is because RAIF has better
control over the data and parity caching.
1 Introduction
The importance of files varies greatly. If lost, some files can be
easily regenerated, some can be regenerated with difficulty, and some
cannot be regenerated at all. The loss of some files, such as
financial data, can be catastrophic. Therefore, files must be
stored with varying levels of redundancy using data replication or
erasure-correction codes. File storage is a complicated set of
trade-offs between data protection, performance, data management
convenience, and special infrastructure requirements. For example,
some files must be shared by many users, whereas some are only
available locally on read-only media; some files must be encrypted;
and some can be efficiently compressed. At the same time, every
possible storage sub-component, such as a disk or a remote server, has a
set of unique features. Therefore, an ideal storage-virtualization
system must support most physical and logical storage devices, as well
as support various per-file data placement policies and per-file
special features such as compression and encryption.
Hardware-virtualization systems are limited to specific types of
lower storage devices.
Driver-level storage virtualization systems support more device
types, but the number of local and SAN device types is still limited.
Device-level and driver-level storage virtualization systems, such as
hardware and software RAID [34], operate on raw data
blocks without knowledge of meta-data. This means that they use the same
storage policies for all files. At most, they try to use statistical
information about data accesses in an attempt to increase
performance [47].
This also means that information
on individual disks in an array has no meaning and little or no information
can be extracted if too many disks fail.
File-system-level storage virtualization systems still support
only limited types of storage; many support just one. This is because
they have to explicitly support specific NAS and other protocols as
well as special features such as compression and encryption.
Stackable file systems are a useful and well-known technique for
adding functionality to existing file
systems [54,53]. They allow incremental addition
of features and can be dynamically loaded as external kernel modules.
Stackable file systems overlay another lower file system,
intercept file system events and data bound from user processes to the
lower file system, and in turn use the lower file system's operations
and data. Most stackable file systems in the past have assumed a
simple one-to-one mapping: the stackable file system was layered on
top of one lower directory on a single file system. A different class
of stackable file systems that use a one-to-many mapping (fan-out) has
previously been
suggested [38,16] and was
recently developed from the FiST [48] templates.
We have developed a fan-out RAID-like stackable file system called
Redundant Array of Independent Filesystems (RAIF).
RAIF is a storage-virtualization system that imposes virtually
no restrictions on the underlying stores and allows versatile per-file and
per-directory storage policies. RAIF derives its usefulness from
three main features: flexibility of configuration,
access to high-level information, and easier administration.
First, because RAIF is stackable, it can be mounted over directories and,
thus, over any combination of lower file systems. For example, it can be
mounted over network file systems like NFS and Samba, AFS
distributed file systems, and local file systems-all at the same time.
RAIF leverages the well-maintained code and protocols of existing file
systems. In fact, RAIF can even utilize future file systems
and protocols.
Stackable file systems can be mounted on top of each other.
Existing stackable file systems offer features like
encryption [50],
data-integrity verification [27],
virus checking [32],
versioning [33], tracing [3],
and compression [51].
These file systems can be mounted over RAIF as well as below it.
Second, because RAIF operates at the file system level, it has access
to high-level file system meta-data that is not available to
traditional block-level storage virtualization systems.
This meta-data allows the optimization of redundancy schemes,
data placement, and read-ahead algorithms.
For example, RAIF can stripe large multimedia files across different
branches for performance, and concurrently use two parity pages for important
financial data files that must survive even two failures. Dynamic
RAIF-level migration allows one to optimize RAIF reliability, resource
utilization, and performance.
Third, administration is easier because files are stored on
unmodified lower-level file systems. Therefore, the size of these
lower file systems can be changed, and they can be backed up easily
using standard software. The data is easier to recover in the case of
failure because it is stored in files with the same names as their
upper-level counterparts. For example, if the files are replicated on
several disks, then every such disk will contain an ordinary file
system with the same files intact.
A common limitation of software RAIDs is that data recovery is slow
and may require a restart from the very beginning if it is interrupted.
RAIF performs storage recovery on a per-file basis and can even do it
in the background, concurrently with normal activity.
If irreparable inconsistencies are detected, RAIF can identify
the specific files affected, which is more user-friendly than the
lists of block numbers offered by block-level systems.
Like other data striping and replication systems, RAIF can improve
performance for multi-process workloads. Even for I/O-intensive
single-process workloads that require many synchronous operations,
RAIF's performance is comparable with the performance of driver-level
software RAID systems. For RAIF configurations similar to standard
RAID4 and RAID5, RAIF can outperform driver-level and even some
hardware implementations thanks to better control over file system
caches.
Moreover, most other storage-virtualization systems choose a single
data-placement policy, which is not optimal for all files. RAIF can
optimize performance for all files because it can use better
data-placement policies for individual files or groups of files.
The rest of the paper is organized as follows.
Section 2 outlines the design of RAIF.
Section 3 describes some interesting implementation details.
Section 4 presents an evaluation of RAIF.
Section 5 discusses related work.
We conclude and outline future directions in Section 6.
2 Design
Existing storage-virtualization systems are limited in three ways: (1)
they only virtualize a limited class of storage devices; (2) they
support one or a small number of data placement policies, such as
replication on a subset of lower storage devices or striping with
parity; and (3) they provide few (usually no) per-file data management
features such as compression, consistency validation, or encryption.
Even so, existing storage-virtualization systems are complex,
expensive, and hard to maintain. This is because traditional
storage-virtualization systems must explicitly support
different types of lower storage types and features.
Stackable file systems are a technique for layering new functionality on
top of existing file systems.
As seen in Figure 1, a stackable file system's methods
are called by the Virtual File System (VFS) as with other file
systems, but in turn it uses another file system instead of performing
operations on a backing store such as a disk or an NFS
server [35,53]. Before calling the
lower-level file system's methods, a stackable file system can modify
the operation or the data.
Stackable file systems behave like normal file systems from the
perspective of the VFS; from the perspective of the underlying file
system, they behave like the VFS.
Fan-out stackable file systems differ from linear stackable file
systems in that they call multiple underlying file systems, or
branches.
Figure 1: Linear file system stacking
Redundant Array of Independent Filesystems (RAIF) is a stackable
fan-out file system. We designed it with flexibility in mind. RAIF
can be mounted over any set of file systems. This
means that it does not have to support all possible storage types and
protocols explicitly: it can leverage the code of dozens of existing
file systems and NAS protocols. RAIF will even be able to reuse
future file systems and protocols without modification. If
necessary, RAIF can still be mounted over standard RAID arrays or any
other storage-virtualization system. In addition, existing and future
stackable file systems can be mounted above RAIF or over any lower
branches. This allows one to add important extra features such as
compression or encryption in a selective way. Figure 2
shows an example RAIF file system mounted over several different types
of lower storage. In this figure, letters below RAIF denote the
branch labels as follows:
C A read-only CD-ROM file system.
E A set of Ext3 file systems mounted over local disks.
V A versioning stackable file system mounted over an NFS client.
N An encryption stackable file system mounted over an NFS client.
All data stored on this remote branch is automatically encrypted.
G A TmpFS Linux file system that stores data in virtual memory
or in the swap area. Because virtual memory may be scarce,
the branch data is compressed with a stackable compression file system.
Figure 2: A possible combination of RAIF fan-out stacking and
other file systems stacked linearly. Letters below RAIF
denote the branch labels.
2.1 RAIF Data Placement
RAIF is designed at a high level of abstraction and leverages
well-maintained, external code. Therefore, we were able to concentrate
on storage virtualization issues rather than support for different
types of lower storage devices, placement of individual blocks on
these devices, and NAS or SAN protocols. RAIF duplicates the
directory structure on all of the lower branches. The data files are
stored using different RAIF modes that we call levels,
analogous to standard RAID levels:
- RAIF0
The file is striped over a set of lower file systems. The striping
unit may be different for different files. As we describe below,
this level also allows us to distribute entire files across branches.
- RAIF1
The file is replicated over a set of branches.
Note that we define RAIF1 slightly differently from the original RAID
level 1 [34]. The original RAID level 1 definition
corresponds to RAIF01.
- RAIF4
The file is striped as in RAIF0 but a dedicated branch is used for
parity. This level is useful for heterogeneous sets of branches,
for example if the parity branch is much faster than the
others and the workload has many writes, or if the parity branch is
much slower and the workload is read-biased.
- RAIF5
This level is similar to RAIF4, but the parity is rotated through
different branches.
- RAIF6
In RAIF6, extra parity branches are used to recover from two or more
simultaneous failures.
- RAIF01
This level is a mirrored RAIF0 array.
- RAIF10
Similarly to RAIF01, a mirrored array is striped over a set of branches.
Small files may occupy only a portion of a single stripe. To
distribute space utilization and accesses among branches, we start the
stripes of different files on different branches. We use the term
starting branch to denote the branch where the file's first
data page is located. By default, the starting branch is derived from
the file name using a hash function. Also, users may specify
starting branches explicitly.
Another use of the starting branch is to randomize the data placement
of entire files. In particular, one may use RAIF0 with a large
striping unit size. In this case, every small file will be entirely
placed on its starting branch whereas large files will be striped.
For RAIF levels 4, 5, and 6, small files will be stored on their
starting branches and their parity will be stored on parity branches.
Essentially, small files will be automatically replicated on two or
three branches whereas large files will be striped. Also, it is
possible to specify a special striping width value (-1) to
force files to be stored on their starting branch independently of
their size. This is useful to replicate data on two random branches
(level 5) or one random and one or two fixed branches (levels 4 and 6).
RAIF can assign levels and striping unit sizes to files and
directories individually, or by applying regular expressions to file
names. For example, if users' home directories are to be stored on a
RAIF mounted over a set of branches as shown in
Figure 2, one may use the following global rules:
- Use RAIF1 to replicate *.c, *.h, *.doc, and other important
files on all local drives (branches E0...EN) and branch V.
This way, important files are replicated locally, stored remotely, and
also stored with versions at the same time.
- Use RAIF4 to stripe large multimedia files on all local drives
and keep parity data on the remote NFS server (branch N). This allows
us to save precious space on the local drives and still keep parity to
recover files in case of a single disk failure. Note that multimedia
files are usually not changed frequently. Therefore, the remote
server is seldom contacted for common read operations.
- Use branch G for intermediate files (e.g., *.o). This way these
files are available for repeated compilations but are purged if not
used for a while.
- Use RAIF1 over branches C and G to provide the illusion
of writing to a read-only file system. As we will describe in
Section 2.3, RAIF provides a simplified
unification functionality [48]. For example, if a
CD-ROM contains source code, one may compile it directly from the
CD-ROM. Resulting files will be put onto the G branch and users will
see a merged set of files in a single directory.
- Use RAIF0 or RAIF5 on the E branches for all other files as they are
either regenerable or unimportant.
In addition, individual users may be allowed to
define special rules on a per-file or per-directory basis.
2.2 RAIF Rules
The meta-information about every file includes the file's starting
branch, RAIF level, striping unit, and the set of branches used to store
the file. Since the file name is the only information available for a file
LOOKUP operation, RAIF needs to maintain a mapping
of file names to meta-information to perform LOOKUP operations.
In an early RAIF prototype [23], we used a hash
function to find the branch with per-file meta-information. However,
this approach is not suitable for a storage-virtualization system in
which any subset of branches can be used to store a file: RAIF needs
to know the file storage configuration in order to determine the
subset of branches used to store the file. RAIF's meta-information
storage is based on two assumptions: first, we assume that RAIF
meta-information does not change frequently; second, we assume that
the number of storage policies is much smaller than the number of
files. Therefore, every storage policy is associated with a regular
expression to match file names. A regular expression, a RAIF level, a
striping unit size, and a set of branches together define a RAIF
rule. A lookup, then, consists of matching a file name
with a rule and looking up the file in the returned set of branches.
Rules are stored in special files on a subset of lower branches.
These files are not visible from above RAIF and are read at directory
lookup time. This approach allows RAIF to decrease both system time
and I/O overheads. Directories with no rules contain no rule files,
which is the common case. Also, storing rule files close to the files
they relate to increases data locality on the lower branches and thus
improves performance. RAIF supports the following three types of
rules:
- Global rules are inherited by lower directories. They can be
added or removed only manually.
-
Local rules are not inherited by lower directories and have
higher priority than global rules. Generally, these rules are
necessary for exception handling. For example, they can be used to
define special policies for an individual file. However, the most
common use of local rules is to handle RENAME and rule-change
operations, as we will describe in Section 2.2.2.
-
Meta rules specify policies for storing RAIF rule files.
This way, these special rule files can be replicated on all or only a
subset of branches to balance reliability and performance. Also, meta
rules are useful if some branches are mounted read-only. Finally,
this allows one to dedicate branches for storing RAIF rules. For
example, such branches can be networked file systems to allow sharing
of the rules between servers. Dedicated branches are thus
similar to dedicated meta-data servers in cluster storage
systems [1]. Regular expressions in meta rules are
matched only against lower directory names.
Let us again consider the example RAIF configuration shown in
Figure 2, and assume that we want to store a small directory
tree as shown in Figure 3. As we discussed in
Section 2.1,
we may want to have a global rule for the topmost directory,
raif, to stripe all multimedia files on the local hard disks
and keep their parity on a remote branch (RAIF4 configuration).
However, one may want to add a special local rule to the dir1
directory to replicate birth.avi on all the local drives and
a remote server because that file contains especially precious data.
2.2.1 Rule Matching
Upon a file LOOKUP operation, RAIF matches the file name
against the regular expressions in all relevant rule files.
Rules in every directory are arranged sequentially according to their
priority. Local rules have the highest priority and are tried first.
Global rules in every directory have precedence over global
rules of the parent directory. This way, every rule has a unique priority
value. Therefore, the rule-matching process proceeds by
scanning the rules sequentially, starting from the highest-priority
local rule in the current directory and finishing at the
lowest-priority global rule from the RAIF mount-point directory.
Because we assume that rules are not changed frequently, RAIF can use
finite-state machines (e.g., using the Aho-Corasick pattern-matching
algorithm [2]) to avoid sequential scanning.
Let us now consider the LOOKUP operation in more detail.
First, RAIF matches the file name against all relevant rules using the
finite automaton for the current directory. Out of the returned set of
rules, RAIF selects the highest-priority rule and looks up the file on
one of the branches according to that rule. After this
LOOKUP operation, RAIF knows if the lower file exists and if
it is a regular file or a directory. If the file exists, RAIF looks
up the rest of the branches. In case of a directory LOOKUP,
RAIF reads and parses its rules if they exist.
If the file being looked up does not exist, RAIF returns from the
LOOKUP operation. The rest of the branches are looked up
later, upon calls to file or directory CREATE functions,
because this is the earliest opportunity for RAIF to know the type of
these files. This allows RAIF to minimize the number of
LOOKUP calls sent to the lower file systems.
Figure 3: A sample directory tree.
2.2.2 Rule Management
Rules for groups of files allow RAIF to perform with minimal overheads
for common file system operations because only a minimal amount of
extra meta-information requires maintenance in memory and on the lower
branches. This is possible because RAIF rules are kept intact most of
the time. Let us consider the three situations in which rule changes
are required.
Rename operations change the name of the file. Therefore,
the rule that matches a file may be different before and after it is
renamed. Note that this is not likely because most renames do not
change the logical meaning of the file being renamed. For example, it
is unlikely that the source file main.c would be renamed to a
video file main.avi. However, the location of the starting
branch may change even in the common case, which is important if the
file is striped. Therefore, if the old storage policy does not
correspond to the new file name, RAIF has two options: (1) add a local
rule for the new file (the regular expression field is the actual new
file name), or (2) store the file according to its new name. RAIF
adds a local rule for large files and moves the data for small files.
The file-size threshold is configurable. Upon an UNLINK
operation of a file, the corresponding local rule is deleted if it
exists.
Moving a directory may require an update of the rules for
that directory. For example, Figure 4 shows
the directory tree of Figure 3 with directory
dir2 moved into dir1. We can see that if dir1 has
any rules, then these rules could conflict with the placement of the
files in the old dir2. In that case, RAIF would add the necessary
global rules to dir2. Note that the number of
rules to add is usually small. In the worst case, the global rules
from the directories above may require an addition to a single
directory.
Figure 4: Same directory tree with dir2 moved inside dir1.
Manual addition, removal, and modification of rules
by users is not a frequent operation.
However, it may result in conflicts if existing files match the
new rule and the new rule does not correspond to the old storage policy.
Again, RAIF offers two possible options: (1) moving the files' data;
and (2) adding local rules for affected files.
The first option may be useful for storage reconfiguration.
Rule changes usually correspond to administrators' desire
to modify the storage configuration. For example, an administrator
may want to increase the storage capacity and add another local disk
to the RAIF configuration shown in Figure 2.
In that case, administrators will change the existing rule to stripe
data across more branches, and may want to migrate the data for all
existing files as well.
The second option, adding local rules, corresponds to the standard
technique of lazy storage migration.
In particular, new files will be stored according to the new rules
whereas old files will be gradually migrated if deleted or completely
overwritten.
Rename and directory-movement operations both require changes to
rules or files in only one directory.
Rule additions, removals, and modifications may require recursive
operations and are therefore performed partially in user mode.
In particular, a user-level utility traverses the directory tree bottom-up
and gradually updates it by calling the kernel-level directory
rule-update routines. Per-directory updates are not recursive, and
RAIF performs them in the kernel to avoid races.
As an example rule-update scenario, consider the
directory tree shown in Figure 3. Let us
assume that we want to add a global rule to directory raif
with the regular expression a.txt. First, the user-level program
for rule addition will issue an ioctl call to
ask the kernel component to add the rule to directory dir1.
Because that directory has no files that match the regular expression
a.txt, RAIF will just add that global rule to dir1 and return.
Second, the user-level program will do the same for dir2,
which has a file that matches the new regular expression.
Depending on the file size or additional program flags,
RAIF either adds a local rule for that file or moves its data.
(Storage policies must be changed only in that case.)
If RAIF moves the data, it first creates local rules for every
matched file in a directory to ensure that the files' data
is always consistent with the rules. Only after doing
this, RAIF removes these temporary
local rules, adds a new global rule to dir2, and returns.
Third, the user-level program calls RAIF to add a rule to
directory raif. Finally, RAIF adds the global rule to raif
and removes the temporary global rules from dir1 and dir2.
2.3 Merging and Unification Semantics
RAIF levels that stripe the files can be used to merge several
small file systems together to form a single, larger file system. Similar
to Chunkfs [19], such merging decreases the
total consistency checking time. RAIF can merge any number of file systems
without having to modify their source code or on-disk data layouts.
RAIF can also store parity locally or remotely to increase
data reliability.
RAIF's design ensures that files stored on several branches are
visible as a unified name-space from above.
This allows RAIF to join several file systems together similar to
Unionfs [48].
Thus, one can run programs that require read-write access to the
directory structure from a read-only CD-ROM or a DVD-ROM.
For example, one may create rules to store rule files and all the new
files on the writable branches only. This way, one can
compile programs from read-only media directly, or temporarily store
useful files on RAM-based file systems.
2.4 RAIF Administration
RAIF's rule-changing process is useful in many cases,
such as when adding or removing RAIF branches,
or when increasing or decreasing available storage space.
However, the rule-changing process may be lengthy so it is wise to
estimate the storage space changes beforehand. RAIF has user-level
utilities for this purpose.
RAIF has a user-level Perl script that accepts high-level descriptions
of file types and information about the relative importance of files.
This script can change rules and even migrate data to increase or
decrease storage space utilization given this information. For
example, an administrator could use the script to free N gigabytes
of space when necessary [55]. This script can perform
automatic storage reconfiguration if periodically started by a
cron job. For example, RAIF can store all files with
replication while space is plentiful but gradually change the
reliability of data up to the lowest allowed level as space becomes scarce.
Also, user-mode tools can initiate delayed conversion of file storage
policies. For example, RAIF can create local rules for files affected
by renaming or rule-changing operations during high system load times.
Later, the cron daemon can initiate conversion of these files
during periods in which the system is underutilized.
This design allows RAIF to be simple in the kernel and operate
with clear and deterministic rules. At the same time, more
sophisticated and abstract policies can be processed and
defined at the user level.
2.4.1 RAIF Backup and Security
RAIF stores files on lower file systems as regular files.
This provides three main benefits.
First, it allows incremental backups on a per-branch basis.
These backups can be restored on individual failed branches.
Second, RAIF files have the same owners and attributes as their
counterparts on lower branches. Similarly, rule files have
the same owners and access permissions as their parent directories.
This means that users not allowed to write to a directory are not
allowed to create rules in that directory because they cannot create
rule files there. Third, administrators can set up quotas for the
lower file systems and control the usage of these individual branches.
This could be used to discourage users from setting up rules to
replicate all their files.
2.5 Performance

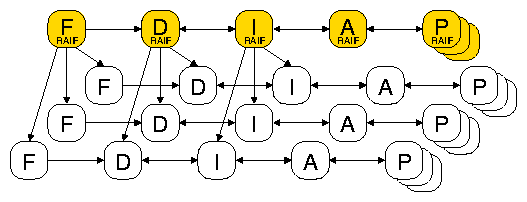

RAIF is a file system, and as such is located above file system caches.
Therefore, it can efficiently use all available memory for data
and meta-data caching. For example, both data and parity are automatically
cached in the page cache [13]. This allows RAIF to outperform
driver-level and even some hardware RAID controllers (with small caches)
under a write-oriented workload.
RAIF takes advantage of its access to high level information to perform
per-file performance optimizations. For example, it only calculates
parity for newly-written information. Block-level RAID systems do not
have sufficient information and have to calculate parity for whole pages
or blocks. Worse yet, they have to read the old parity even for small
file appends.
Standard read-ahead algorithms on layered storage
systems can be not just suboptimal but can even degrade
performance [43]. RAIF can optimize its read-ahead
policies for different RAIF levels and even files.
2.5.1 Load-Balancing
RAIF imposes virtually no limitations on the file systems that form
the lower-level branches. Therefore, the properties of these lower
branches may differ substantially. To deal with this, RAIF
supports homogeneous and heterogeneous storage policies. For
example, RAIF4 assumes that a dedicated parity branch is
different from the others, whereas RAIF5 assumes that all lower-level
branches are similar. Starting-branch selection can be randomized to
balance load for all branches or fixed to one branch to force small
files be placed on that branch.
To optimize read performance, we integrated a dynamic load-balancing
mechanism into RAIF1.
The expected delay or waiting time is often advocated
as an appropriate load metric [39] for heterogeneous
configurations.
The per-branch delay estimate is calculated
by exponentially averaging the latencies of page and meta-data
operations on each individual branch. A good delay estimate can track
lasting trends in file system load, without getting swayed by
transient fluctuations. We ensure this by maintaining an
exponentially-decaying average and a deviation estimate.
Proportional share load-balancing distributes read requests
to underlying file system branches in inverse proportion to their
current delay estimates. This way, it seeks to minimize expected
delay and maximize overall throughput.
To implement this, RAIF first converts delay estimates from each
underlying branch into per-branch weights, which are
inversely related to the respective delay estimates.
A kernel thread periodically updates a randomized array of branch
indexes where each branch is represented in proportion to its weight.
As RAIF cycles through the array, each branch receives its
proportional share of operations.
2.6 Reliability
If one or several branches fail, RAIF can either operate in a degraded mode
or recover the data on-line or off-line.
On-line recovery is performed
similarly to the rule-management procedures. That is, a user-mode
program recursively traverses directories bottom-up and invokes the
kernel-mode per-directory recovery procedure. During a file's recovery, RAIF
either migrates the file's storage policy to store the file on fewer
branches or regenerates missing information into a new branch.
During this recovery process, RAIF can serve requests and recover
missing data pages on demand.
Off-line recovery is performed by
a user-level fsck program. The program accesses the
lower branches directly and generates the data on the replacement
branch. The program can also recover individual files if necessary.
In both cases, RAIF reports files that cannot be
recovered instead of less meaningful block numbers as reported by
block-level RAIDs.
2.6.1 Resynchronization
A notorious problem of most software and hardware RAID systems that do
not use non-volatile memory is the write hole problem. In particular,
concurrent writes (i.e., writes of the same information to
several branches for RAID1 or writing of data and associated parity in
the case of RAIF5) reach permanent storage in an undefined order
unless performed synchronously and sequentially. Synchronous
sequential writes significantly degrade performance and are not used
in practice. Unordered writes may result in an inconsistent state
after a power failure if, say, a parity block is written to the disk
but the associated data update is not.
RAIF creates a hidden file called .raif_status in every branch
when RAIF is mounted and removes that file on unmount. This file
is not exposed to users.
This allows RAIF to identify power-failures or
other events that can potentially result in data inconsistencies
by checking for the existence of that file during the RAIF mount operation.
If the .raif_status file is detected, RAIF starts the data
resynchronization process in the background. It recalculates
parity for all files and, for RAIF1 it makes the data on all the
branches identical. This procedure guarantees that, after it is complete,
the data and the parity on all the branches are consistent.
However, (similar to other software RAIDs) it does not guarantee that the
latest write completely or partially succeeds.
Like rule management, per-directory resynchronization is performed in the
kernel whereas recursive operations are performed by our user-level tool.
During the resynchronization process, RAIF works as usual except that
all operations result in resynchronization of the requested data and
meta-data if they are not yet resynchronized. On-line
resynchronization is possible because RAIF is mounted over lower file
systems which are already in a consistent state by the time RAIF is
mounted. For example, journals on lower file systems are used by
their respective journalling file systems to restore a consistent
state. The .raif_status file is not removed on unmount if
the RAIF self-verification is not finished. The
.raif_status file contains the current RAIF verification
position. This allows RAIF to continue its self verification the next
time it is mounted, or restart it in case of another power failure.
RAIF performs the verification on-line because it operates over other
consistent-state file systems. In practice, this is a useful
property, given that
self-verification can take days or even longer for large
arrays [10].
2.6.2 Reliability of RAIF vs. RAID
One of the major differences between RAIF and lower-level (driver or
hardware) RAID systems is that RAIF operates above file system caches.
One may think that this delays writes in memory and results in lower
reliability. However, existing file systems mounted over RAID systems
delay writes the same way before the RAID is called to write the
information. Therefore, in both cases writes are delayed the same
way, if one considers the whole file system stack.
Simultaneous power failure and a branch failure may results in
silent data corruption [4]
for parity-based redundancy schemes. For this to happen (1) a parity
write must succeed; (2) the data write must fail; and
(3) some other branch that is used to store this file must fail. In that
case, the parity does not correspond to the data any more and will
produce invalid data if used to recover the data on the failed branch.
Similarly, as described above, big writes (if interrupted) may result
in the situation when some blocks of a file contain previous information
and some new. These problems exist for most driver-level RAID systems and even
hardware RAID controllers not equipped with non-volatile memory.
Nevertheless, such RAID controllers are widely used because these
problems do not happen too often.
Out of several existing solutions for the problem, journalling of data
and meta-data writes in a non-volatile memory card is most suitable
for RAIF. It does not require major architectural changes compared to
say, ZFS's whole stripe writes in RAID-Z [45]. Also,
the addition of a journal can dramatically decrease RAIF
resynchronization times [10].
3 Implementation
Generally, RAIF can be implemented for most OSs that support
stacking [53]. We implemented RAIF as a loadable Linux
kernel module that can be compiled for both Linux 2.4 and Linux 2.6.
RAIF reuses the code of other file systems. As a result, its entire
source consists of only 8,375 lines of C code. This is roughly three
times smaller than the Linux RAID driver's source code.
The RAIF structure is modular so that new RAIF levels, as well as
parity and load balancing algorithms, can be added without any
significant changes to the main code.
Our RAIF6 implementation uses the Row-Diagonal Parity
Algorithm (RDP) [7] which protects against double
disk failures. The RDP algorithm is computationally less intensive than
most other ECC algorithms. It stores data in the clear and uses only
XOR operations to compute parity. Each data block belongs
to one row-parity set and one diagonal-parity set. Because of this,
RAIF sometimes has to read multiple stripes when writing data.
3.2 Single vs. Double Buffering
RAIF must meet exacting performance and scalability requirements. We
changed the common stackable file system templates accordingly.
Stackable file systems create and maintain their own versions of file
system objects. For example, Figure 5 shows
Linux kernel data structures representing an open file on RAIF
mounted over three lower branches. Among other things, the file
structure (F) encapsulates per-process current file position (users
can set it with the llseek system call). RAIF creates its
file structure when a file is opened; lower file systems create
their own versions of file structures. RAIF's file structure keeps
pointers to these lower file structures. Similarly, RAIF and lower
file systems have their own directory entry structures (D),
inode structures (I) that among other things keep file size
information, address spaces (A), and cached data pages
(P). This way, every object stores the information specific
for that file system's object. For example, if a file is striped
using RAIF level 0, its file size (stored in the inode structure) is a
sum of the sizes stored in the lower branches' inode structures.
Figure 5: Kernel data structure duplication for every open file.
RAIF structures are shown on the top with three lower file systems below.
Arrows show important pointers between the structures. F,
D, I, A, and P are the file, directory entry,
inode, address space, and the memory page structures respectively.
Most of these file system structures are small and do not add significant
memory overheads. However, the page structures are usually mapped
one-to-one with the associated memory pages. Therefore, stackable
file systems on Linux duplicate the data. This allows them to keep
both modified (e.g., encrypted or compressed) data on lower file systems
and unmodified (e.g., unencrypted or uncompressed) data in
memory at the same time and thus save considerable amounts of CPU time.
However, stackable file systems that do not modify data suffer from
double data caching on Linux [22]. For them, double
caching does not provide any benefits but makes the page cache size
effectively a fraction of its original size. For linear stackable file
systems it divides the available cache size in two [25].
For RAIF, the reduction factor depends on the RAIF level and ranges
from two for level 0 to the number of lower branches plus one for
level 1. In addition, data is copied from one layer to the other,
unnecessarily consuming CPU resources.
Unfortunately, the VFS architecture imposes constraints that make sharing
data pages between lower and upper layers complicated. In particular, the
data page is a VFS object that belongs to a particular inode as shown in
Figure 5. The stackable file system developer
community is considering a general solution to this
problem [22,17,25,41].
Meanwhile, we have designed several solutions applicable in different
situations.
No upper-level caching
Upon a read or a write call, RAIF does not call the
page-based VFS operations. Instead, it calculates the positions of
the data on the lower branches and calls the read or write
methods of the lower file systems directly. These lower methods copy the data
between the user-level buffer and the lower data pages. Therefore,
the data is never cached at the RAIF level and no data copying between
the layers is necessary. Unfortunately, this method still requires in-memory
data replication for all the lower branches for RAIF level 1. More
importantly, however, this method does not guarantee cache coherency
between layers if the file is memory-mapped: in that case, the data is
double buffered again. Therefore, we have to disable this RAIF optimization
for memory-mapped files.
Temporary low-level caching
For RAIF level 1 and memory-mapped files, RAIF allocates cache pages
for its data and copies that data to and from cache pages of the lower
branches. However, RAIF attempts to release these lower pages as soon
as possible. In particular, it marks lower pages with the
PG_reclaim flag every time it issues a write request on a lower
page. Later, upon completion of a write request, Linux releases such
pages automatically. This way, lower pages are only allocated for a
short duration of the pending write requests' time. Read requests are
satisfied from the RAIF page cache directly or forwarded below for
I/O. This deallocation of the lower pages allowed us to reduce the
running times of RAIF1 mounted over several lower branches by an order
of magnitude under I/O intensive workloads.
3.3 Other Optimizations
Another problem of all Linux fan-out stackable file systems is the
sequential execution of VFS requests. This increases the latency
of VFS operations that require synchronous accesses to several branches.
For example, RAIF deletes files from all branches sequentially.
However, it is important to understand that, while this increases the
latency of certain file system operations, it has little impact on
aggregate RAIF performance under a workload generated by many
concurrent processes. Several attempts to perform at least the
unlink operations asynchronously on Linux Ext2 and Ext3 file
systems proved that it is difficult in practice [5].
For RAIF levels that stripe data, RAIF delays file create
operations. RAIF initially creates files only on
the starting and parity branches. If the file eventually grows
bigger, then RAIF creates files on the other branches.
During the readdir operation, RAIF merges the lists of files
from different branches. To optimize this operation, RAIF analyzes
the rules in a given directory and derives the minimal subset of
branches that contains all the files. For example, consider a RAIF
configuration with three branches and two rules: store files matching
the pattern *.mpg on the first two branches and store all other
files on the last two branches. It is sufficient to read the list of
files from the middle branch because all the files stored on RAIF are
also stored on that lower branch. This optimization allows RAIF to
avoid issuing readdir requests for some branches. The problem
of finding the minimal subset of branches that contains a set of files
is NP-complete. Therefore, RAIF uses heuristics to check for simple
and common cases first.
3.4 Rule Representation
All rules visible from the user-level have a unified text-based
representation of the form:
T:P:R:L:U:S:B,
where:
T is the rule type, and can be a global rule
(G), a local rule (L), or a meta rule (M);
P is the rule priority relative to other rules of the same type
in the current directory;
R is the regular expression (e.g., *.mpg);
L is the RAIF level;
U is the striping unit size (-1 to
store files on the starting and parity branches only);
S is the starting branch (-1 to use
name-hash value);
B is the list of branch names to store files on.
For example, if one issues a command to add a rule:
raifctl -d /homes \
add "G:1:*.mpg:0:-1:-1:E0,E1,E2,N"
then RAIF will write the same rule string to the rule files
on the lower branches. Therefore, user-level tools and custom scripts
can read and parse these files when RAIF is not mounted.
4 Evaluation
We have evaluated RAIF's performance using a variety of configurations
and workloads.
We conducted our benchmarks on two 2.8GHz Intel Xeon (2MB cache, 800MHz
bus) machines with 2GB of RAM. The first machine was equipped with
four Maxtor Atlas 15,000 RPM 18.4GB Ultra320 SCSI disks formatted with
Ext2. For benchmarking hardware RAID, we replaced the SCSI adapter
with an Adaptec 2120S SCSI RAID card with an Intel 80302
processor and 64MB of RAM. We used the second machine as an NFS
client. Both machines ran Red Hat 9 with a vanilla 2.6.11 Linux
kernel and were connected via a dedicated 100Mbps link.
We used the Auto-pilot benchmarking suite [49] to
run all of the benchmarks. The lower-level file systems were remounted
before every benchmark run to purge the page cache. We ran each test
at least ten times and used the Student-t distribution to compute
95% confidence intervals for the mean elapsed, system, user, and wait
times. Wait time is the elapsed time less CPU time used and consists
mostly of I/O, but process scheduling can also affect it. In each
case the half-widths of the confidence intervals were less than 5% of
the mean.
For the remainder of the evaluation, RAIFL-B refers to
RAIF level L with B branches. Similarly, RAIDL-B
refers to the Linux software RAID driver and HWRAIDL-B
refers to hardware RAID.
We use EXT2 to refer to a configuration with an
unmodified Ext2.
4.1 Random-Read
RANDOM-READ is a custom micro-benchmark designed to evaluate
RAIF under a heavy load of random data read operations. It spawns 32
child processes that concurrently read 32,000 randomly located
4,096-byte blocks in a set of files. We ran this benchmark with
RAIF0, RAIF1, and RAIF5 using a stripe size of 64KB with up to four
Ext2 branches. We did not include results for RAIF4, because RAIF0
with N branches is the same as RAIF4 with N + 1 branches. In
addition, we did not include results for RAIF6 because they are
similar to RAIF0 with dedicated ECC branches, or to RAIF5 with
rotating ECC branches. We compared RAIF to RAID with similar
configurations. Before running the benchmark, we created eight 2GB
files on each of the four disks. We wrote the files in a round-robin
fashion for each set of eight files, so that each file spanned almost
the entire physical disk. Because the files were created in this way,
the benchmark always spans almost the full size of each disk,
regardless of the number of branches we used.
Figure 6: RANDOM-READ benchmark results using
RAIF0, RAIF1, and RAIF5 with varying numbers of branches.
Ext2 results are shown as a reference.
Figure 7: Postmark results for RAIF and RAID with varying levels and
numbers of branches. Also shown are the results for an Adaptec 2120S
RAID5 card. Results for Ext2 are shown as a reference.
Figure 6 shows a comparison of RAID and RAIF under
this workload, as well as reference results for Ext2. User and system
times were small and statistically indistinguishable for all
configurations. Additionally, the elapsed times for all
RAID0 and RAIF0 configurations were statistically
indistinguishable. This is because they use the same number of disks,
and RAIF passes the requests directly to the underlying Ext2 branches.
As we added more disks to RAIF0, the I/O requests were distributed among
more disks, and the I/O time dropped significantly. RAIF1 performed
slightly better than RAID1, except for RAIF1-3, which
had a 6.4% overhead. The performance of RAIF5 was slightly worse than
RAID5, with 4.6% overhead for three branches, and 1.7% for four
branches. Overall, we can conclude that RAIF has comparable
performance to driver-level software RAID for read workloads.
4.2 Postmark v1.5
Postmark [28] simulates the operation of electronic
mail servers. It performs a series of file appends, reads, creations,
and deletions, showing how RAIF might behave in an I/O-intensive
environment. We chose a Postmark configuration to stress I/O: it
creates 60,000 files of size between 512-10K bytes in 600
directories, and performs 600,000 transactions. All operations were
selected with equal probability.
Every other Postmark's operation is either a CREATE or an
UNLINK. Due to VFS restrictions, these RAIF operations are
executed sequentially on lower branches and are CPU-intensive.
This makes Postmark a challenging benchmark for RAIF.
We ran Postmark for all applicable numbers of branches under RAIF
levels 0, 1, 4, 5, and 6. We compared the results to both
driver-level and hardware RAID implementations for their respective
available RAID levels. Figure 7 shows these results,
as well as results for Ext2 for reference.
RAIF0
As we can see from Figure 7, RAIF0-2
was 18.6% slower than RAID0-2, due to a 59.1%
increase in system time and a 32.4% increase in wait time. The
performance degraded slightly when more branches were added (overheads
of 25.6% and 20.7% for three and four branches, respectively). This
was due to the increased system time associated with extra branches.
RAIF1
The results for RAIF1 were similar to those for RAIF0, with similar
increases to system time overhead as more branches were added. In this
case, the elapsed time overheads were 26.4%, 30.5%, and 29.3% for
configurations with 2, 3, and 4 branches, respectively. For RAIF1, we
release cache pages of lower file systems after all write operations.
This allowed us to decrease RAIF1-3 and
RAIF1-4 overheads by approximately ten times.
RAIF4 and RAIF5
Whereas the system time of RAIF4 was higher than RAID4, the wait time was
significantly lower, resulting in overall better performance. The system time
of RAIF4-3 was 2.2 times that of
RAID4-3, but it had 67.6% less wait time, resulting
in a 46.1% improvement. Similarly, the system time of
RAIF4-4 was 2.3 times that of RAID4-4,
but the wait time was reduced by 75.8%, yielding an overall
improvement of 54.0%.
We saw similar results for RAIF5 and RAID5. For
RAIF5-3, system time was 2.1 times that of
RAID5-3, wait time was 63.8% lower, and there was an
overall improvement of 44.5%. The system time of
RAIF5-4 was 2.4 times that of RAID5-4,
the wait time improved by 74.3%, and the elapsed time improved by
53.0%.
To understand this behavior, we profiled EXT2 mounted over
RAID using OSprof [24]. We noticed that the
EXT2 WRITEPAGE operation had disproportionally
high latency due to disk head seeks. In particular, the Linux RAID
driver experienced 6,569 long disk head seeks while writing dirty
buffers to the disk. RAIF, on the other hand, waited for only 211
long disk head seek operations. This is because RAIF operates above
file system caches and parity pages are cached as normal data pages.
Linux RAID, however, operates with buffers logically below file system
caches. Therefore, the Linux RAID driver has to read existing parity
pages for most write operations, whereas RAIF has them cached.
We also benchmarked one of the hardware implementations of RAID5, and
RAIF5 was faster than that implementation as well. Hardware and
driver-level implementations had similar system time overheads.
RAIF5-3 had 28.6% less wait time than
HWRAID5-3, and was 8.3% faster overall.
RAIF5-4 had 41.5% wait time improvement over
HWRAID5-3, and the elapsed time improved by 13.3%.
This is because even though the RAID controller card has 64MB of RAM
available for caching parity, RAIF has access to main memory.
RAIF6
RAIF6-4 (not shown in Figure 7
because of the large value difference compared to the other bars)
performed 70% slower than RAID6-4, with a total
elapsed time of 1,183.8 seconds. This shows that our current
RAIF6 implementation requires further optimization for write-oriented
workloads (part of our future work).
In summary, RAIF, like RAID, improves performance of read-oriented workloads.
For writes, RAIF5
performs better than a driver-level software RAID5 system and even
better than a hardware RAID5 system, both of which support only fixed
configurations. Due to improved caching policies, RAIF caches parity
information and can avoid many of the parity-read requests necessary
to update existing parity pages.
Furthermore, CPU speeds are increasing at a much faster pace than network and disk
I/O. Therefore, these results will become even more significant
in the future. Also, we used one of the fastest hard drives available
today. Results with commodity SCSI or even ATA hard disks would favor
RAIF more.
5 Related Work
Block-level RAID
Striping and replication of data possibly combined with the use of
error-correction codes on homogeneous [34] and
heterogeneous [8] configurations of local hard drives has
been commonly used for decades to improve data survivability and performance.
Modern block-level virtualization systems [21] rely on
Storage Area Network (SAN) protocols such as iSCSI
to support remote block devices.
The idea of using different RAID levels for different data access
patterns at the block level was used in several projects at the
driver [14] and hardware [47]
levels. However, the lack of higher-level information forced the
developers to make decisions based either on statistical information
or semantics of particular file systems [42].
Exposed RAID (E×RAID [9]) reveals information about
parallelism and failure isolation boundaries, performance, and failure
characteristics to the file systems. Informed Log-structured file
system (I.LFS) uses E×RAID for dynamic load balancing, user
control of file replication, and delayed replication of files.
RAIF already operates at the file system level and possesses all the meta
information it needs to make intelligent storage optimization
decisions [9].
Solaris's ZFS is both a driver
and a file system [45]. Despite having all the necessary
information, it supports storage policies on a storage-pool basis only.
This means that whole devices and whole file systems use the same
storage policies.
RAIF provides more versatile virtualization on a per-file basis.
File-system-level RAID
Higher level storage virtualization systems operate on files [11].
Their clients work as file systems that send networked requests
to the servers [15,1]. Clients find
files on servers using dedicated meta-servers or hash
functions [20].
Ceph and Zebra are distributed file systems that use per-file RAID levels
and striping with parity [46,15]. They have
dedicated meta servers to locate the data. Ursa Minor's networking
protocol supports special properties for storage fault handling [1].
Coda's client file system is a wrapper over a pseudo-device that
directly communicates with a user-mode caching
server [30]. The server replicates data
on other similar servers.
File-system-level storage virtualization systems can support per-file
storage policies. However, they still
have fixed and inflexible architectures. In contrast, RAIF's stacking
architecture allows it to utilize the functionality of existing file
systems transparently and to support a variety of configurations without
any modifications to file systems' source code. Thus, RAIF can use any
state-of-the-art and even future file systems. Also, any changes to the
built-in protocols of any fixed storage virtualization system will require
significant time and effort and may break compatibility between the
storage nodes.
Storage utilization
Storage resizing is handled differently by different storage-virtualization
systems. For example, ZFS starts by lazily writing new data to
newly added disks (which are initially free) and old disks [45].
Similarly, specially designed hash functions can indirectly cause more
data to be written to the newly added disk [20].
This approach works only if all old data eventually gets overwritten, which
is not the case in many long-term storage systems. An alternative
approach is to migrate the data in the
background [6,12].
RAIF supports both lazy and background data migration.
Load balancing
Media-distribution servers use data striping and replication to
distribute the load among servers [6]. The stripe
unit size and the degree of striping have been shown to influence the
performance of these servers [40].
Replication in RAIF uses proportional-share load balancing using the
expected delay as the load metric. This approach is generally
advocated for heterogeneous systems [39].
RAID survivability
Remote mirroring is a popular storage disaster recovery
solution [29]. In addition to data
replication, distributed RAID systems [44] use m/n redundancy
schemes [37] to minimize the extra storage needs.
RAIF can use a number of remote branches to store remote data
copies or parity.
Two popular solutions to the silent data corruption
problem [4] are
journalling [10] (e.g., using non-volatile memory)
and log-structured writes [45,9].
RAIF can support journalling with no major design changes.
Stackable file systems
RAIF is implemented as a stackable file system [52].
Stackable file systems are not new [53]. Originally
introduced in the early '90s [38], stackable file
systems were proposed to augment the functionality of existing file
systems by transparently mounting a layer above them. Normal
stackable file systems mount on top of a single lower level file
system. Today, existing stackable file systems provide
functionalities like encryption [50],
versioning [33], tracing [3],
data corruption detection [27], secure
deletion [26], and more. Similarly to stacking, it is also
possible to add new functionality to other file systems
directly [26].
A class of stackable file systems known as fan-out
file systems mount on top of more than one file system to provide useful
functionality [38,16].
However, so far the most common application of fan-out has been
unification [31,18,36,48].
Unification file systems present users with a merged view of files
stored on several lower file systems.
RAIF is a stackable fan-out file system that can mount on top of
several underlying file systems (branches) to provide RAID-like functionality.
6 Conclusions
This paper has three primary contributions: (1) we present a storage
virtualization file system we call RAIF, which supports many possible
compositions of existing and future file systems; (2) RAIF supports
per-file storage policies; and (3) it offers new possibilities for
users and administrators.
- RAIF is designed at a higher level of abstraction than other file
systems and, in fact, reuses other file systems without modification.
This allows RAIF to remain simple and maintainable while having the
flexibility of many existing file systems combined. RAIF has general
support for all NAS and local storage types without any
backend-specific code. Therefore, RAIF not only supports existing
file systems but also support future file systems and types of
storage. In addition, other stackable file systems can be inserted
above RAIF, or below it (but mounted over several lower branches) to
provide extra features (e.g., encryption, compression, and versioning).
RAIF currently supports all standard RAID levels and their advanced
versions. We designed RAIF to be extensible with easy-to-modify
parameters and with modular support for new RAIF levels that determine
the RAIF personality. This makes it easy to add data placement
policies.
-
Usually, files in a data store can be subdivided into groups with
similar purposes, importance, and access patterns. RAIF supports the
notion of rules that allow storage configuration for every such group
of files. A group can be as small as a single file. These rules can
also be applied for a single directory or a branch of a file system
tree. Additionally, meta-rules allow the use of RAIF over read-only
file systems and the implementation of rudimentary name-space
unification.
-
RAIF eases storage administration significantly because many
administration tasks such as security policy assignment, data backup
and restoration, storage device replacement, and file system crash
recovery can be performed for individual lower branches. Simple
user-level scripts allow administrators to change data storage
policies, modify storage configurations, and automatically migrate
data.
RAIF's flexibility does not increase administration complexity. RAIF
allows its administrators to choose appropriate rules and lower file
systems. However, we anticipate that in most configurations RAIF will
have just a few rules and will be mounted over two or three types of
different file systems.
Performance
RAIF has modest system-time overheads. Similar to RAID, it improves
performance for multi-threaded workloads. RAIF has better control
over the caches and has access to the high-level meta-information. In
spite of RAIF's extra functionality, RAIF5 performs better than a
state-of-the-art software block-level RAID5 and even a hardware RAID5
for some write-oriented workloads. In the future, RAIF's relative
performance is expected to improve even more.
Cost-Efficiency
High-end RAID controllers would most likely outperform RAIF because of
their extra caches and CPUs. However, the extra hardware cost spent
on the controller can buy even more commodity memory and CPU power for
the system running RAIF. In that case, the extra resources will be
available for other system activity when not needed by RAIF.
Future Work
We are working on RAIF journal support to increase the reliability and
decrease the array resynchronization time [10].
We are investigating how to improve RAIF6's performance, possibly by
adding other error-correction algorithms-as well as supporting RAIF6
with more than two degrees of redundancy.
We plan to augment RAIF to provide quality-of-service guarantees; we
plan to utilize the fact that RAIF operates at the file system level
and has access to all meta-information [21].
We plan to port RAIF to other OSs such as FreeBSD, Solaris, and
Windows. This is easier than it might appear because stackable file
systems on many OSs operate in a similar way [53].
RAIF is released under the GPL at:
ftp://ftp.fsl.cs.sunysb.edu/pub/raif/
Acknowledgments
We would like to acknowledge contributions of
Adam David Alan Martin for help with RAIF level 6,
Jeff Sipek for discussions about the Linux RAID driver,
and Charles P. Wright for his help with the experiments.
This work was partially made possible by NSF CAREER
EIA-0133589 and CCR-0310493 awards and HP/Intel gifts
numbers 87128 and 88415.1.
References
- [1]
-
M. Abd-El-Malek, W. V. Courtright II, C. Cranor, G. Ganger, J. Hendricks, A. J.
Klosterman, M. Mesnier, M. Prasad, B. Salmon, R. R. Sambasivan,
S. Sinnamohideen, J. D. Strunk, E. Thereska, M. Wachs, and J. J. Wylie.
Ursa Minor: Versatile Cluster-based Storage.
In Proc. of the Fourth USENIX Conf. on File and
Storage Technologies, pp. 59-72, San Francisco, CA, December
2005.
- [2]
-
A. V. Aho and M. J. Corasick.
Efficient string matching: an aid to bibliographic search.
Communications of the ACM, 18(6):333-340, June 1975.
- [3]
-
A. Aranya, C. P. Wright, and E. Zadok.
Tracefs: A File System to Trace Them All.
In Proc. of the Third USENIX Conf. on File and
Storage Technologies, pp. 129-143, San Francisco, CA,
March/April 2004.
- [4]
-
N. Brown.
Re: raid5 write performance, November 2005.
http://www.mail-archive.com/linux-raid@vger.kernel.org/msg02886.html.
- [5]
-
M. Cao, T. Y. Ts’o, B. Pulavarty, S. Bhattacharya, A. Dilger, and A. Tomas.
State of the art: Where we are with the ext3 filesystem.
In Proc. of the Linux Symposium, Ottawa, ON, Canada, July
2005.
- [6]
-
C. Chou, L. Golubchik, and J. C. S. Lui.
Striping doesn't scale: How to achieve scalability for continuous
media servers with replication.
In International Conf. on Distributed Computing Systems,
pp. 64-71, Taipei, Taiwan, April 2000.
- [7]
-
P. Corbett, B. English, A. Goel, T. Grcanac, S. Kleiman, J. Leong, and
S. Sankar.
Row-Diagonal Parity for Double Disk Failure Correction.
In Proc. of the Third USENIX Conf. on File and
Storage Technologies, pp. 1-14, San Francisco, CA,
March/April 2004.
- [8]
-
T. Cortes and J. Labarta.
Extending Heterogeneity to RAID level 5.
In Proc. of the Annual USENIX Technical Conf., pp.
119-132, Boston, MA, June 2001.
- [9]
-
T. E. Denehy, A. C. Arpaci-Dusseau, and R. H. Arpaci-Dusseau.
Bridging the information gap in storage protocol stacks.
In Proc. of the Annual USENIX Technical Conf., pp.
177-190, Monterey, CA, June 2002.
- [10]
-
T. E. Denehy, A. C. Arpaci-Dusseau, and R. H. Arpaci-Dusseau.
Journal-guided Resynchronization for Software RAID.
In Proc. of the Fourth USENIX Conf. on File and
Storage Technologies, pp. 87-100, San Francisco, CA, December
2005.
- [11]
-
G. A. Gibson, D. F. Nagle, W. Courtright II, N. Lanza, P. Mazaitis, M. Unangst,
and J. Zelenka.
NASD Scalable Storage Systems.
In Proc. of the 1999 USENIX Extreme Linux Workshop,
Monterey, CA, June 1999.
- [12]
-
T. Gibson.
Long-term Unix File System Activity and the Efficacy of
Automatic File Migration.
PhD thesis, Department of Computer Science, University of Maryland
Baltimore County, May 1998.
- [13]
-
B. S. Gill and D. S. Modha.
WOW:Wise Ordering for Writes-Combining Spatial and Temporal
Locality in Non-Volatile Caches.
In Proc. of the Fourth USENIX Conf. on File and
Storage Technologies, pp. 129-142, San Francisco, CA, December
2005.
- [14]
-
K. Gopinath, N. Muppalaneni, N. Suresh Kumar, and P. Risbood.
A 3-tier RAID storage system with RAID1, RAID5, and compressed
RAID5 for Linux.
In Proc. of the FREENIX Track at the 2000 USENIX Annual
Technical Conf., pp. 21-34, San Diego, CA, June 2000.
- [15]
-
J. Hartman and J. Ousterhout.
The Zebra Striped Network File System.
In Proc. of the 14th Symposium on Operating Systems
Principles, pp. 29-43, Asheville, NC, December 1993
- [16]
-
J. S. Heidemann and G. J. Popek.
File system development with stackable layers.
ACM Transactions on Computer Systems, 12(1):58-89, February
1994.
- [17]
-
J. S. Heidemann and G. J. Popek.
Performance of cache coherence in stackable filing.
In Proc. of the Fifteenth ACM Symposium on Operating
Systems Principles, pp. 3-6, Copper Mountain Resort, CO,
December 1995.
- [18]
-
D. Hendricks.
A Filesystem For Software Development.
In Proc. of the USENIX Summer Conf., pp. 333-340,
Anaheim, CA, June 1990.
- [19]
-
V. Henson, A. Ven, A. Gud, and Z. Brown.
Chunkfs: Using Divide-and-Conquer to Improve File System Reliability
and Repair.
In Proc. of the Second Workshop on Hot Topics in System
Dependability (HotDep 2006), Seattle, WA, November 2006.
- [20]
-
R. J. Honicky and E. Miller.
Replication Under Scalable Hashing: A Family of Algorithms for
Scalable Decentralized Data Distribution.
In Proc. of the 18th International Parallel and
Distributed Processing Symposium, April 2004.
- [21]
-
L. Huang, G. Peng, and T. Chiueh.
Multi-dimensional Storage Virtualization.
In Proc. of the 2004 ACM SIGMETRICS Conf. on
Measurement and Modeling of Computer Systems, pp. 14-24. June
2004.
- [22]
-
N. Joukov.
Re: [RFC] Support for stackable file systems on top of nfs,
November 2005.
http://marc.theaimsgroup.com/?l=linux-fsdevel&m=113193082115222.
- [23]
-
N. Joukov, A. Rai, and E. Zadok.
Increasing distributed storage survivability with a stackable
raid-like file system.
In Proc. of the 2005 IEEE/ACM Workshop on Cluster
Security, in conjunction with the Fifth IEEE/ACM International Symposium on
Cluster Computing and the Grid (CCGrid 2005), pp. 82-89, Cardiff, UK, May
2005
- [24]
-
N. Joukov, A. Traeger, R. Iyer, C. P. Wright, and E. Zadok.
Operating system profiling via latency analysis.
In Proc. of the 7th Symposium on Operating Systems Design
and Implementation, pp. 89-102, Seattle, WA, November 2006.
ACM SIGOPS.
- [25]
-
N. Joukov, T. Wong, and E. Zadok.
Accurate and efficient replaying of file system traces.
In Proc. of the Fourth USENIX Conf. on File and
Storage Technologies, pp. 337-350, San Francisco, CA, December
2005.
- [26]
-
N. Joukov and E. Zadok.
Adding Secure Deletion to Your Favorite File System.
In Proc. of the third international IEEE Security In
Storage Workshop, pp. 63-70, San Francisco, CA, December
2005.
- [27]
-
A. Kashyap, S. Patil, G. Sivathanu, and E. Zadok.
I3FS: An In-Kernel Integrity Checker and Intrusion Detection File
System.
In Proc. of the 18th USENIX Large Installation System
Administration Conf., pp. 69-79, Atlanta, GA, November
2004.
- [28]
-
J. Katcher.
PostMark: A New Filesystem Benchmark.
Tech. Rep. TR3022, Network Appliance, 1997.
www.netapp.com/tech_library/3022.html.
- [29]
-
K. Keeton, C. Santos, D. Beyer, J. Chase, and J. Wilkes.
Designing for disasters.
In Proc. of the Third USENIX Conf. on File and
Storage Technologies, pp. 59-72, San Francisco, CA,
March/April 2004.
- [30]
-
J. J. Kistler and M. Satyanarayanan.
Disconnected operation in the Coda file system.
In Proc. of 13th ACM Symposium on Operating Systems
Principles, pp. 213-225, Asilomar Conf. Center, Pacific Grove, CA,
October 1991.
- [31]
-
D. G. Korn and E. Krell.
A New Dimension for the Unix File System.
Software-Practice and Experience, 20(S1):19-34, June 1990.
- [32]
-
Y. Miretskiy, A. Das, C. P. Wright, and E. Zadok.
Avfs: An On-Access Anti-Virus File System.
In Proc. of the 13th USENIX Security Symposium (Security
2004), pp. 73-88, San Diego, CA, August 2004.
- [33]
-
K. Muniswamy-Reddy, C. P. Wright, A. Himmer, and E. Zadok.
A Versatile and User-Oriented Versioning File System.
In Proc. of the Third USENIX Conf. on File and
Storage Technologies, pp. 115-128, San Francisco, CA,
March/April 2004.
- [34]
-
D. Patterson, G. Gibson, and R. Katz.
A case for redundant arrays of inexpensive disks (RAID).
In Proc. of the ACM SIGMOD, pp. 109-116, June 1988.
- [35]
-
B. Pawlowski, C. Juszczak, P. Staubach, C. Smith, D. Lebel, and
D. Hitz.
NFS version 3 design and implementation.
In Proc. of the Summer USENIX Technical Conf., pp.
137-152, Boston, MA, June 1994.
- [36]
-
J. S. Pendry and M. K. McKusick.
Union mounts in 4.4BSD-Lite.
In Proc. of the USENIX Technical Conf. on UNIX and
Advanced Computing Systems, pp. 25-33, New Orleans, LA, December 1995.
- [37]
-
S. Rhea, P. Eaton, D. Geels, H. Weatherspoon, B. Zhao, and J. Kubiatowicz.
Pond: The OceanStore Prototype.
In Proc. of the Second USENIX Conf. on File and
Storage Technologies, pp. 1-14, San Francisco, CA, March 2003.
- [38]
-
D. S. H. Rosenthal.
Evolving the Vnode interface.
In Proc. of the Summer USENIX Technical Conf., pp.
107-118, Anaheim, CA, June 1990.
- [39]
-
B. Schnor, S. Petri, R. Oleyniczak, and H. Langendorfer.
Scheduling of parallel applications on heterogeneous workstation
clusters.
In Proc. of PDCS'96, the ISCA 9th International Conf.
on Parallel and Distributed Computing Systems, pp. 330-337, Dijon,
France, September 1996.
- [40]
-
P. Shenoy and H. M. Vin.
Efficient striping techniques for variable bit rate continuous media
file servers.
Tech. Rep. UM-CS-1998-053, University of Massachusetts at
Amherst, 1998.
- [41]
-
J. Sipek, Y. Pericleous, and E. Zadok.
Kernel Support for Stackable File Systems.
In Proc. of the 2007 Ottawa Linux Symposium,
volume 2, pp. 223-227, Ottawa, Canada, June 2007.
- [42]
-
M. Sivathanu, V. Prabhakaran, A. C. Arpaci-Dusseau, and R. H. Arpaci-Dusseau.
Improving Storage System Availability with D-GRAID.
In Proc. of the Third USENIX Conf. on File and
Storage Technologies, pp. 15-30, San Francisco, CA,
March/April 2004.
- [43]
-
L. Stein.
Stupid File Systems Are Better.
In Proc. of the 10th Workshop on Hot Topics in Operating
Systems (HotOS X), Santa Fe, NM, June 2005.
- [44]
-
M. Stonebreaker and G. A. Schloss.
Distributed raid-a new multiple copy algorithm.
In Proc. of the 6th International Conf. on Data
Engineering (ICDE'90), pp. 430-437, February 1990.
- [45]
-
Sun Microsystems, Inc.
Solaris ZFS file storage solution.
Solaris 10 Data Sheets, 2004.
www.sun.com/software/solaris/ds/zfs.jsp.
- [46]
-
S. Weil, S. Brandt, E. Miller, D. Long, and C. Maltzahn.
Ceph: A Scalable, High-Performance Distributed File System.
In Proc. of the 7th Symposium on Operating Systems Design
and Implementation, pp. 307-320, Seattle, WA, November 2006.
ACM SIGOPS.
- [47]
-
J. Wilkes, R. Golding, C. Staelin, and T. Sullivan.
The HP AutoRAID Hierarchical Storage System.
ACM Transactions on Computer Systems, 14(1):108-136,
February 1996.
- [48]
-
C. P. Wright, J. Dave, P. Gupta, H. Krishnan, D. P. Quigley, E. Zadok, and
M. N. Zubair.
Versatility and unix semantics in namespace unification.
ACM Transactions on Storage (TOS), 2(1):1-32, February 2006.
- [49]
-
C. P. Wright, N. Joukov, D. Kulkarni, Y. Miretskiy, and E. Zadok.
Auto-pilot: A platform for system software benchmarking.
In Proc. of the Annual USENIX Technical Conf.,
FREENIX Track, pp. 175-187, Anaheim, CA, April 2005.
- [50]
-
C. P. Wright, M. Martino, and E. Zadok.
NCryptfs: A secure and convenient cryptographic file system.
In Proc. of the Annual USENIX Technical Conf., pp.
197-210, San Antonio, TX, June 2003.
- [51]
-
E. Zadok, J. M. Anderson, I. Badulescu, and J. Nieh.
Fast Indexing: Support for size-changing algorithms in stackable
file systems.
In Proc. of the Annual USENIX Technical Conf., pp.
289-304, Boston, MA, June 2001.
- [52]
-
E. Zadok and I. Badulescu.
A stackable file system interface for Linux.
In LinuxExpo Conf. Proc., pp. 141-151, Raleigh,
NC, May 1999.
- [53]
-
E. Zadok, R. Iyer, N. Joukov, G. Sivathanu, and C. P. Wright.
On incremental file system development.
ACM Transactions on Storage (TOS), 2(2):161-196, May 2006.
- [54]
-
E. Zadok and J. Nieh.
FiST: A Language for Stackable File Systems.
In Proc. of the Annual USENIX Technical Conf., pp.
55-70, San Diego, CA, June 2000.
- [55]
-
E. Zadok, J. Osborn, A. Shater, C. P. Wright, K. Muniswamy-Reddy, and J. Nieh.
Reducing Storage Management Costs via Informed User-Based Policies.
In Proc. of the 12th NASA Goddard, 21st IEEE Conf. on
Mass Storage Systems and Technologies, pp. 193-197, College
Park, MD, April 2004
Footnotes:
1Appears in the proceedings of the 24th IEEE Conference on Mass Storage Systems and Technologies (MSST 2007)
File translated from
TEX
by
TTH,
version 3.76.
On 25 Jul 2007, 13:56.
